- Metal Current Sensing Chip Resistor ,0402 ,0.01R(10mR) ,±1% ,0.33W ,MnCu ,100PPM ,WALTER-MSTC - MSTC0402MW33R010F
- Metal Current Sensing Chip Resistor ,0402 ,0.04R(40mR) ,±1% ,1/4W ,MnCu ,100PPM,WALTER-MSTC - MSTC0402MW25R040F
- Metal Current Sensing Chip Resistor ,0402 ,0.05R(50mR) ,±1% ,1/4W ,MnCu ,100PPM ,WALTER-MSTC - MSTC0402MW25R050F
- Metal Current Sensing Chip Resistor ,0805 ,0.002R(2mR) ,±1% ,1/2W ,MnCu ,±75PPM ,WALTER-MSTC - MSTC0805MW50R002F-LV
- Metal Current Sensing Chip Resistor ,0402 ,0.0025R(2.5mR) ,±1% ,0.33W ,MnCu ,±150PPM ,WALTER-MSTC - MSTC0402MW332M50F
- Metal Current Sensing Chip Resistor ,0402 ,0.005R(5mR) ,±1% ,0.33W ,MnCu ,100PPM ,WALTER-MSTC - MSTC0402MW33R005F
- Metal Current Sensing Chip Resistor ,0402 ,0.015R(15mR) ,±1% ,0.33W ,MnCu ,±100PPM ,WALTER-MSTC - MSTC0402MW33R015F
- Metal Current Sensing Chip Resistor ,0402 ,0.02R(20mR) ,±1% ,0.33W ,MnCu ,100PPM ,WALTER-MSTC - MSTC0402MW33R020F
- Metal Current Sensing Chip Resistor ,0402 ,0.025R(25mR) ,±1% ,0.33W ,MnCu ,±100PPM ,WALTER-MSTC - MSTC0402MW33R025F
- Metal Current Sensing Chip Resistor ,0402 ,0.047R(47mR) ,±1% ,1/4W ,MnCu ,100PPM,WALTER-MSTC - MSTC0402MW25R047F
- Metal Current Sensing Chip Resistor ,0603 ,0.002R(2mR) ,±1% ,0.33W ,MnCu ,150PPM ,WALTER-MSTC - MSTC0603MW33R002F
- Metal Current Sensing Chip Resistor ,0603 ,0.003R(3mR) ,±1% ,0.33W ,MnCu ,±100PPM ,WALTER-MSTC - MSTC0603MW33R003F
- Metal Current Sensing Chip Resistor ,0603 ,0.005R(5mR) ,±1% ,0.33W ,MnCu ,±100PPM ,WALTER-MSTC - MSTC0603MW33R005F
- Metal Current Sensing Chip Resistor ,0603 ,0.01R(10mR) ,±1% ,0.33W ,MnCu ,±75PPM ,WALTER-MSTC - MSTC0603MW33R010F
- Metal Current Sensing Chip Resistor ,0805 ,0.002R(2mR) ,±1% ,1/2W ,MnCu ,±75PPM ,WALTER-MSTC - MSTC0805MW50R002FF
- Metal Current Sensing Chip Resistor ,0805 ,0.004R(4mR) ,±1% ,1/2W ,MnCu ,±75PPM ,WALTER-MSTC - MSTC0805MW50R004F
- Metal Current Sensing Chip Resistor ,0805 ,0.005R(5mR) ,±1% ,1/2W ,MnCu ,±75PPM ,WALTER-MSTC - MSTC0805MW50R005F
- Metal Current Sensing Chip Resistor ,1206 ,0.002R(2mR) ,±1% ,1W ,MnCu ,±75PPM ,WALTER-MSTC - MSTC1206M1W0R002FF
- Metal Current Sensing Chip Resistor ,1206 ,0.005R(5mR) ,±1% ,1W ,MnCu ,±50PPM ,WALTER-MSTC - MSTC1206M1W0R005FLV
- Metal Current Sensing Chip Resistor ,1206 ,0.001R(1mR) ,±1% ,1W ,MnCu ,±100PPM ,WALTER-MSTC - MSTC1206M1W0R001FS
- Metal Current Sensing Chip Resistor ,0805 ,0.001R(1mR) ,±1% ,1/2W ,MnCu ,±150PPM ,WALTER-MSTC - MSTC0805MW50R001FLV
- Metal Current Sensing Chip Resistor ,0805 ,0.001R(1mR) ,±2% ,1/2W ,MnCu ,±150PPM ,WALTER-MSTC - MSTC0805MW50R001G-LV
- Metal Current Sensing Chip Resistor ,0805 ,0.003R(3mR) ,±1% ,1/2W ,MnCu ,±75PPM ,WALTER-MSTC - MSTC0805MW50R003F-LV
- Metal Current Sensing Chip Resistor ,0805 ,0.004R(4mR) ,±2% ,1/2W ,MnCu ,±75PPM ,WALTER-MSTC - MSTC0805MW50R004F-LV
- Metal Current Sensing Chip Resistor ,0805 ,0.005R(5mR) ,±1% ,1/2W ,MnCu ,±75PPM ,WALTER-MSTC - MSTC0805MW50R005F-LV
- Metal Current Sensing Chip Resistor ,0805 ,0.010R(10mR) ,±1% ,1/2W ,MnCu ,±50PPM ,WALTER-MSTC - MSTC0805MW50R010F-LV
- Metal Current Sensing Chip Resistor ,0805 ,0.020R(20mR) ,±1% ,1/2W ,MnCu ,±50PPM ,WALTER-MSTC - MSTC0805MW50R020F-LV
- Metal Current Sensing Chip Resistor ,1206 ,0.001R(1mR) ,±1% ,1W ,MnCu ,±75PPM ,WALTER-MSTC - MSTC1206M1W0R001FLV
- Metal Current Sensing Chip Resistor ,1206 ,0.002R(2mR) ,±1% ,1W ,MnCu ,±75PPM ,WALTER-MSTC - MSTC1206M1W0R002FLV
- Metal Current Sensing Chip Resistor ,1206 ,0.003R(3mR) ,±1% ,1W ,MnCu ,±75PPM ,WALTER-MSTC - MSTC1206M1W0R003FLV
- Metal Current Sensing Chip Resistor ,0805 ,0.0025R(2.5mR) ,±1% ,1/2W ,MnCu ,±75PPM ,WALTER-MSTC - MSTC0805MW502M50FLV
- Metal Current Sensing Chip Resistor ,0603 ,0.004R(4mR) ,±1% ,0.33W ,MnCu ,±100PPM - MSTC0603MW33R004F
- Metal Current Sensing Chip Resistor ,0402 ,0.03R(30mR) ,±1% ,1/4W(0.25W) ,MnCu ,±100PPM ,WALTER-MSTC - MSTC0402MW25R030F
- Metal Current Sensing Chip Resistor ,0603 ,0.001R(1mR) ,±1% ,0.33W ,MnCu ,150PPM - MSTC0603MW33R001F
- Metal Current Sensing Chip Resistor ,0805 ,0.0015R(1.5mR) ,±1% ,1/2W ,MnCu ,±100PPM ,WALTER-MSTC - MSTC0805MW501M50F
- Metal Current Sensing Chip Resistor ,0805 ,0.003R(3mR) ,±1% ,1/2W ,MnCu ,±75PPM ,WALTER-MSTC - MSTC0805MW50R003F
- Metal Current Sensing Chip Resistor ,1206 ,0.001R(1mR) ,±1% ,1W ,MnCu ,±75PPM ,WALTER-MSTC - MSTC1206M1W0R001FF
- Metal Current Sensing Chip Resistor ,1206 ,0.0015R(1.5mR) ,±1% ,1W ,MnCu ,±75PPM ,WALTER-MSTC - MSTC1206M1W01M50FLV
- Metal Current Sensing Chip Resistor ,1206 ,0.004R(4mR) ,±1% ,1W ,MnCu ,±75PPM ,WALTER-MSTC - MSTC1206M1W0R004FLV

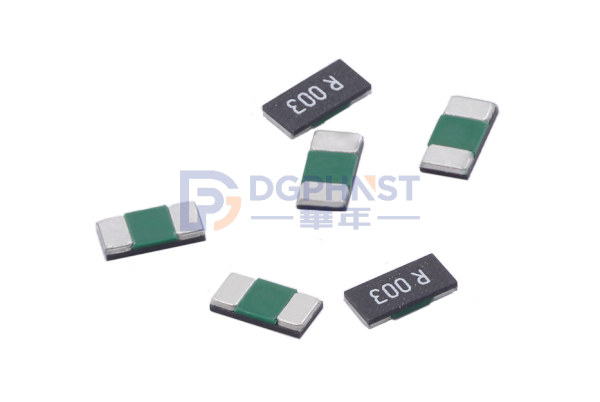

| Product Type： | Current Sensing Resistor |
| Resistance Value： | 1mΩ~50mΩ |
| Resistance Tolerance： | ±1%(F)；±0.5%(D |
| Size： | 0402；0603；0805；1206 |
| Power Rating： | 0.25W;0.33W;0.5W;1W |
{{cartItemsCount}}
| Product Type | Current Sensing Resistor |
| Resistance Value | 1mΩ~50mΩ |
| Resistance Tolerance | ±1%(F)；±0.5%(D |
| Product Series | Metal Current Sensing Chip Resistor |
| Material | MnCu alloy |
| TCR (ppm) | 50ppm/℃;75ppm/℃;100ppm/℃;150ppm/℃ |
| Substrate | Alumina Ceramic |
| Resistive element | Cu - alloy |
| Adhesion layer | Epoxy |
| Terminal electrode | Sn﹑Ni﹑Cu |
| Protective coating | UL- 94-V0 requirements(green) |
| Marking coating | UL- 94-V0 requirements (black) |
| Operating Temperature | -55℃～155℃ |
| Storage Conditions | temperature+10℃～40℃；humidity ≦75% |
| Solder reflow Preheating | 145 ± 15℃, max.120 sec. |
| Reflow Soldering Solder | min. 220℃, max. 60 sec. |
| Maximum temperature | 260±5℃, max. 10sec. |
| Rework temperature（hot air equipment） | 350℃, 3~5seconds |
| MPQ | 10000PCS;5000PCS |
| Size | 0402；0603；0805；1206 |
| Power Rating | 0.25W;0.33W;0.5W;1W |
