- Automotive Resistor ,1206 ,0.01R(10mR) ,±1% ,1W ,MnCu ,±50PPM ,WALTER-STE Auto - STE1206M1W0R010F-Auto
- Automotive Resistor ,1206 ,0.028R(28mR) ,±1% ,1W ,MnCu ,±50PPM ,WALTER-STE Auto - STE1206M1W0R028F-Auto
- Automotive Resistor ,1206 ,0.007R(7mR) ,±1% ,1W ,MnCu ,±50PPM ,- - STE1206M1W0R007FS-Auto
- Automotive Resistor ,1206 ,0.01R(10mR) ,±0.5% ,1W ,MnCu ,±50PPM ,WALTER-STE Auto - STE1206M1W0R010D-Auto

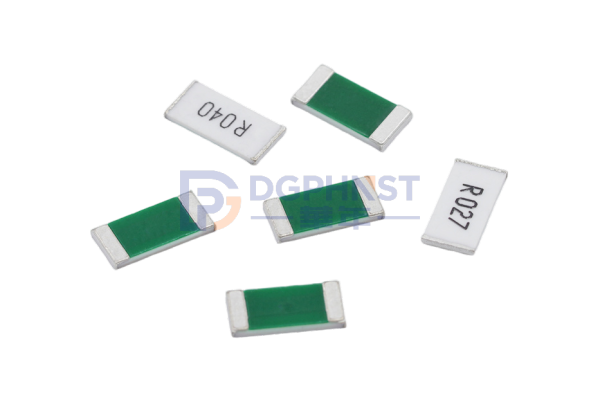

| Product Type： | Metal Foil Current Sensing Resistor |
| Resistance Value： | R002-R700 |
| Resistance Tolerance： | ±0.5%(D) / ±1%(F) |
| Size： | 0603/0805/1206/2010 /2512/3921/4527 |
| Power Rating： | 1/2W~4W |
{{cartItemsCount}}
| Product Type | Metal Foil Current Sensing Resistor |
| Resistance Value | R002-R700 |
| Resistance Tolerance | ±0.5%(D) / ±1%(F) |
| Material | MnCu alloy |
| Substrate | Alumina Ceramic |
| Adhesion layer | Epoxy |
| Resistive element | Cu alloy |
| Terminal electrode | Cu / Ni / Sn |
| Protective coating | Flame-retardant epoxy |
| Marking coating | Flame-retardant epoxy |
| Operating Temperature | -55℃～170℃ |
| Storage Conditions | 10℃~40℃ |
| Preheating | 145 ± 15℃, max. 120 sec |
| Soldering | min. 220℃, max. 60 sec. |
| Maximum temperature | 260±5℃, max. 10sec. |
| Rework Temperature （hot air equipment） | 350℃,3~5seconds |
| Termination Style | SMD |
| EU RoHS | Compliant(2011/65/EU) |
| EU REACH | Dose not contain REACH SVHC(1907/2006/EC) |
| Size | 0603/0805/1206/2010 /2512/3921/4527 |
| Power Rating | 1/2W~4W |
