- Metal Current Sensing Chip Resistor ,0201 ,0.01R(10mR) ,±1% ,1/4W(0.25W) ,MnCu ,±100PPM ,WALTER-MSTC - MSTC0201MW25R010F
- Metal Current Sensing Chip Resistor ,0201 ,0.02R(20mR) ,±1% ,1/4W(0.25W) ,MnCu ,±100PPM ,WALTER-MSTC - MSTC0201MW25R020F
- Metal Current Sensing Chip Resistor ,0201 ,0.005R(5mR) ,±1% ,1/4W(0.25W) ,MnCu ,±100PPM - MSTC0201MW25R005F
| Manufacturer： | WALTER |
| Product Series： | WALTER-MSTC-0201 |

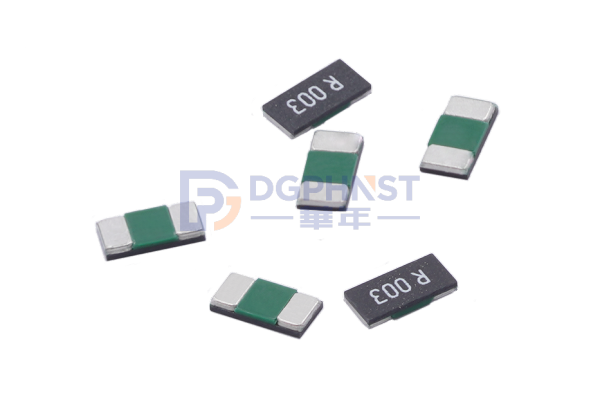

| Product Type： | Metal Current Sensing Chip Resistor |
| EU RoHS： | Compliant(2011/65/EU) |
| EU REACH： | Dose not contain REACH SVHC(1907/2006/EC) |
{{cartItemsCount}}
| Manufacturer | WALTER |
| Product Series | WALTER-MSTC-0201 |
| Product Type | Metal Current Sensing Chip Resistor |
| Product Series | Metal Current Sensing Chip Resistor |
| Size | 0402 |
| Material | MnCu alloy |
| Power Rating | 0.33W |
| Resistance Value | 5mΩ |
| Resistance Tolerance | ±1% |
| TCR (ppm) | ±100 |
| Substrate | Alumina Ceramic |
| Resistive element | Cu - alloy |
| Adhesion layer | Epoxy |
| Terminal electrode | Sn﹑Ni﹑Cu |
| Protective coating | UL- 94-V0 requirements(green) |
| Marking coating | UL- 94-V0 requirements (black) |
| Operating Temperature | -55℃～155℃ |
| Storage Conditions | temperature+10℃～40℃；humidity ≦75% |
| Solder reflow Preheating | 145 ± 15℃, max.120 sec. |
| Reflow Soldering Solder | min. 220℃, max. 60 sec. |
| Maximum temperature | 260±5℃, max. 10sec. |
| Rework temperature（hot air equipment） | 350℃, 3~5seconds |
| MPQ | 10000PCS |
| Unit weight | 0.01g±0.003g |
| EU RoHS | Compliant(2011/65/EU) |
| EU REACH | Dose not contain REACH SVHC(1907/2006/EC) |
