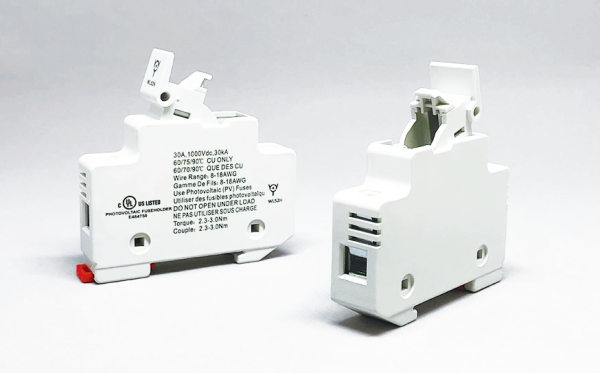

FuseHolders
| Manufacturer： | WALTER |
| Product Series： | WALTER-WL-52H |
| Product Type： | Fuseholders& Accessories |
| EU RoHS： | Compliant(2011/65/EU) |
| EU REACH： | Dose not contain REACH SVHC(1907/2006/EC) |
{{cartItemsCount}}
| Manufacturer | WALTER |
| Product Series | WALTER-WL-52H |
| Product Type | Fuseholders& Accessories |
| Fuse Size | 10*38mm |
| Flammability Ratings | UL 94-V0,Self-extinguishing |
| Terminal Rating | Solid, Stranded,Fine Stranded, Spade Lug,Comb Bus Bar; single and Dual Wire,75℃ and 90℃ Cu wire |
| Wire Range | #18 to #8 |
| Torque Ratings | 26.7 Lb-ln(3.0N-m) Maximum |
| Voltage & Current &SCCR Rating | 1000VDC@30KA,30A MAX;1100VDC@30KA, 30A MAX; 600VAC@50KA,30A MAX; 500VAC@10KA,40A; MAX;500VDC@20KA,40A MAX |
| EU RoHS | Compliant(2011/65/EU) |
| EU REACH | Dose not contain REACH SVHC(1907/2006/EC) |
