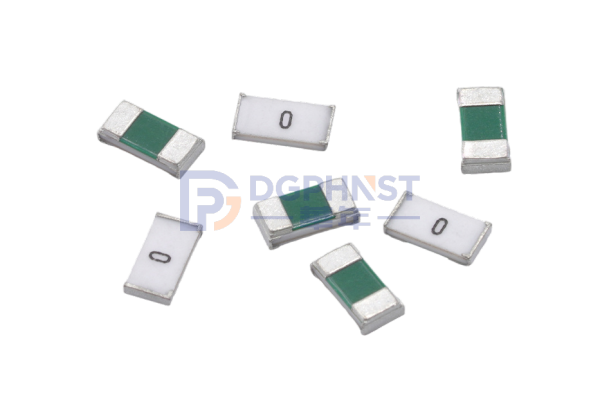

- Metal Current Sensing Chip Resistor ,0603 ,0R ,0.25W ,- ,- ,- ,WALTER-STE - STEJ0603
- Metal Current Sensing Chip Resistor ,0805 ,0R ,0.5W ,- ,- ,- ,WALTER-STE - STEJ0805
- Metal Current Sensing Chip Resistor ,1206 ,0R ,0.75W, - STEJ1206
- Metal Current Sensing Chip Resistor ,2010 ,0R ,1W - STEJ2010
- Metal Current Sensing Chip Resistor ,2512 ,0R ,- ,- ,- ,- ,WALTER-STE - STEJ2512
| Manufacturer： | WALTER |
| Product Series： | WALTER-STEJ |
| Product Type： | Metal Current Sensing Chip Resistor |
| EU RoHS： | Compliant(2011/65/EU) |
| EU REACH： | Dose not contain REACH SVHC(1907/2006/EC) |
{{cartItemsCount}}
| Manufacturer | WALTER |
| Product Series | WALTER-STEJ |
| Product Type | Metal Current Sensing Chip Resistor |
| Structure &Material | |
| Substrate | Alumina Ceramic |
| Adhesion layer | Epoxy |
| Resistive element | Cu alloy |
| Terminal electrode | Cu / Ni / Sn |
| Protective coating | Flame-retardant epoxy |
| Marking coating | Flame-retardant epoxy |
| Environmental Characteristics | |
| Operating Temperature | -55℃～170℃ |
| Storage Conditions | 10℃~40℃ |
| Soldering Parameters | |
| Preheating | 145 ± 15℃, max. 120 sec |
| Soldering | min. 220℃, max. 60 sec. |
| Maximum temperature | 260±5℃, max. 10sec. |
| Rework Temperature （hot air equipment） | 350℃,3~5seconds |
| EU RoHS | Compliant(2011/65/EU) |
| EU REACH | Dose not contain REACH SVHC(1907/2006/EC) |
