- Metal Current Sensing Chip Resistor ,1206 ,0.43R(430mR) ,±1% ,1W ,Alloy ,±50PPM ,WALTER-STE - STE1206A1W0R430F
- Metal Current Sensing Chip Resistor ,1206 ,0.100R(1000mR) ,±1% ,1W ,Alloy ,±50PPM ,WALTER-STE - STE1206A1W0R100F

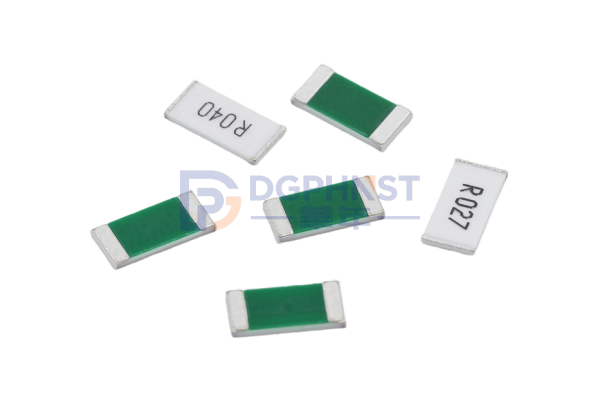

Metal Current Sensing Chip Resistor
| Manufacturer： | WALTER |
| Product Series： | WALTER-STE-A |
| Product Type： | Metal Current Sensing Chip Resistor |
| EU RoHS： | Compliant(2011/65/EU) |
| EU REACH： | Dose not contain REACH SVHC(1907/2006/EC) |
{{cartItemsCount}}
| Manufacturer | WALTER |
| Product Series | WALTER-STE-A |
| Product Type | Metal Current Sensing Chip Resistor |
| Structure &Material | |
| Substrate | Alumina Ceramic |
| Adhesion layer | Epoxy |
| Resistive element | Cu alloy |
| Terminal electrode | Cu / Ni / Sn |
| Protective coating | Flame-retardant epoxy |
| Marking coating | Flame-retardant epoxy |
| Environmental Characteristics | |
| Operating Temperature | -55℃～170℃ |
| Storage Conditions | 10℃~40℃ |
| Soldering Parameters | |
| Preheating | 145 ± 15℃, max. 120 sec |
| Soldering | min. 220℃, max. 60 sec. |
| Maximum temperature | 260±5℃, max. 10sec. |
| Rework Temperature （hot air equipment） | 350℃,3~5seconds |
| EU RoHS | Compliant(2011/65/EU) |
| EU REACH | Dose not contain REACH SVHC(1907/2006/EC) |
