HNST-WALTER-HTE-M Industrial Electronic Co., Ltd.

Wide Terminal Current Sensing Resistor ,0612 ,0.001R(1mR) ,±1% ,1.5W ,MnCu ,±100PPM ,WALTER-HTE - HTE1206M1W5R001F
Wide Terminal Current Sensing Resistor ,0612 ,0.002R(2mR) ,±1% ,1.5W ,MnCu ,±100PPM ,WALTER-HTE - HTE1206M1W5R002F
Wide Terminal Current Sensing Resistor ,0612 ,0.01R(10mR) ,±1% ,2W ,MnCu ,±50PPM ,WALTER-HTE - HTE1206M2W0R010F
Wide Terminal Current Sensing Resistor ,0612 ,0.02R(20mR) ,±1% ,2W ,MnCu ,±50PPM ,WALTER-HTE - HTE1206M2W0R020F
Wide Terminal Current Sensing Resistor ,1225 ,0.001R(1mR) ,±1% ,3W ,MnCu ,±100PPM ,WALTER-HTE - HTE2512M3W0R001FS
Wide Terminal Current Sensing Resistor ,1225 ,0.020R(20mR) ,±1% ,3W ,MnCu ,±50PPM ,WALTER-HTE - HTE2512M3W0R020F
Wide Terminal Current Sensing Resistor ,0508 ,0.001R(1mR) ,±2% ,1W ,MnCu ,±100PPM ,WALTER-HTE - HTE0805M1W0R001G
Wide Terminal Current Sensing Resistor ,0508 ,0.002R(2mR) ,±1% ,1W ,MnCu ,±100PPM ,WALTER-HTE - HTE0805M1W0R002F
Wide Terminal Current Sensing Resistor ,0508 ,0.003R(3mR) ,±1% ,1W ,MnCu ,±100PPM ,WALTER-HTE - HTE0805M1W0R003F
Wide Terminal Current Sensing Resistor ,0508 ,0.004R(4mR) ,±1% ,1W ,MnCu ,±100PPM ,WALTER-HTE - HTE0805M1W0R004F
Wide Terminal Current Sensing Resistor ,0508 ,0.005R(5mR) ,±1% ,1W ,MnCu ,±100PPM ,WALTER-HTE - HTE0805M1W0R005F
Wide Terminal Current Sensing Resistor ,0508 ,0.01R(10mR) ,±1% ,1.2W ,MnCu ,±50PPM ,WALTER-HTE - HTE0805M1W2R010F
Wide Terminal Current Sensing Resistor ,0508 ,0.02R(20mR) ,±1% ,1W ,MnCu ,±50PPM ,WALTER-HTE - HTE0805M1WR020F
Wide Terminal Current Sensing Resistor ,0612 ,0.002R(2mR) ,±1% ,2W ,MnCu ,±100PPM ,WALTER-HTE - HTE1206M2W0R002FS
Wide Terminal Current Sensing Resistor ,0612 ,0.002R(2mR) ,±1% ,1W ,MnCu ,±100PPM ,WALTER-HTE - HTE1206M1W0R002F
Wide Terminal Current Sensing Resistor ,0612 ,0.002R(2mR) ,±2% ,2W ,MnCu ,±100PPM ,WALTER-HTE - HTE1206M2W0R002G
Wide Terminal Current Sensing Resistor0612 ,0.003R(3mR) ,±1% ,2W ,MnCu ,±100PPM ,WALTER-HTE - HTE1206M2W0R003F
Wide Terminal Current Sensing Resistor ,0612 ,0.004R(4mR) ,±1% ,2W ,MnCu ,±100PPM ,WALTER-HTE - HTE1206M2W0R004FS
Wide Terminal Current Sensing Resistor 0612 ,0.005R(5mR) ,±1% ,2W ,MnCu ,±100PPM ,WALTER-HTE - HTE1206M2W0R005F
Wide Terminal Current Sensing Resistor ,0612 ,0.008R(8mR) ,±1% ,1.5W ,MnCu ,±100PPM ,WALTER-HTE - HTE1206M1W5R008F
Wide Terminal Current Sensing Resistor ,0612 ,0.012R(12mR) ,±1% ,1.5W ,MnCu ,±50PPM ,WALTER-HTE - HTE1206M1W5R012F
Wide Terminal Current Sensing Resistor ,0612 ,0.015R(15mR) ,±1% ,1.5W ,MnCu ,±50PPM ,WALTER-HTE - HTE1206M1W5R015F
Wide Terminal Current Sensing Resistor ,0612 ,0.015R(15mR) ,±1% ,2W ,MnCu ,±50PPM ,WALTER-HTE - HTE1206M2W0R015F
Wide Terminal Current Sensing Resistor ,0612 ,0.05R(50mR) ,±1% ,1.5W ,MnCu ,±50PPM ,WALTER-HTE - HTE1206M1W5R050F
Wide Terminal Current Sensing Resistor ,0612 ,0.1R(100mR) ,±1% ,1.5W ,MnCu ,±50PPM ,WALTER-HTE - HTE1206M1W5R100F
Wide Terminal Current Sensing Resistor ,1225 ,0.002R(2mR) ,±1% ,3W ,MnCu ,±100PPM ,WALTER-HTE - HTE2512M3W0R002F
Wide Terminal Current Sensing Resistor ,1225 ,0.003R(3mR) ,±1% ,3W ,MnCu ,±100PPM ,WALTER-HTE - HTE2512M3W0R003F
Wide Terminal Current Sensing Resistor ,1225 ,0.004R(4mR) ,±1% ,3W ,MnCu ,±100PPM ,WALTER-HTE - HTE2512M3W0R004F
Wide Terminal Current Sensing Resistor ,1225 ,0.005R(5mR) ,±1% ,3W ,MnCu ,±100PPM ,WALTER-HTE - HTE2512M3W0R005F
Wide Terminal Current Sensing Resistor ,1225 ,0.006R(6mR) ,±1% ,3W ,MnCu ,±100PPM ,WALTER-HTE - HTE2512M3W0R006F
Wide Terminal Current Sensing Resistor ,1225 ,0.008R(8mR) ,±1% ,3W ,MnCu ,±100PPM ,WALTER-HTE - HTE2512M3W0R008F
Wide Terminal Current Sensing Resistor ,1225 ,0.01R(10mR) ,±1% ,3W ,MnCu ,±50PPM ,WALTER-HTE - HTE2512M3W0R010F
Wide Terminal Current Sensing Resistor ,1225 ,0.025R(25mR) ,±1% ,3W ,MnCu ,±50PPM ,WALTER-HTE - HTE2512M3W0R025F
Wide Terminal Current Sensing Resistor ,1225 ,0.03R(30mR) ,±1% ,3W ,MnCu ,±50PPM ,WALTER-HTE - HTE2512M3W0R030F
Wide Terminal Current Sensing Resistor ,1225 ,0.1R(100mR) ,±1% ,3W ,MnCu ,±50PPM ,WALTER-HTE - HTE2512M3W0R100F
Wide Terminal Current Sensing Resistor ,1530 ,0.02R(20mR) ,±1% ,4W ,MnCu ,±50PPM ,WALTER-HTE - HTE3015M4W0R020F
Wide Terminal Current Sensing Resistor ,1530 ,0.025R(25mR) ,±1% ,4W ,MnCu ,±50PPM ,WALTER-HTE - HTE3015M4W0R025F
Wide Terminal Current Sensing Resistor ,2139 ,0.015R(15mR) ,±1% ,5W ,MnCu ,±50PPM ,WALTER-HTE - HTE3921M5W0R015F
Wide Terminal Current Sensing Resistor ,2139 ,0.02R(20mR) ,±1% ,5W ,MnCu ,±50PPM ,WALTER-HTE - HTE3921M5W0R020F
Wide Terminal Current Sensing Resistor ,3921 ,0.003R(3mR) ,±1% ,5W ,MnCu ,±100PPM ,WALTER-HTE - HTE3921M5W0R003F
Wide Terminal Current Sensing Resistor ,1836 ,0.025R(25mR) ,±1% ,4W ,MnCu ,±50PPM ,WALTER-HTE - HTE3618M4W0R025F
Wide Terminal Current Sensing Resistor ,2139 ,0.03R(30mR) ,±1% ,5W ,MnCu ,±50PPM - HTE3921M5W0R030F
Wide Terminal Current Sensing Resistor ,0508 ,0.05R(50mR) ,±1% ,1W ,MnCu ,±50PPM ,WALTER-HTE - HTE0805M1W0R050F
Wide Terminal Current Sensing Resistor ,0612 ,0.01R(10mR) ,±1% ,1.5W ,MnCu ,±50PPM ,WALTER-HTE - HTE1206M1W5R010F
Wide Terminal Current Sensing Resistor ,0612 ,0.016R(16mR) ,±1% ,2W ,MnCu ,±50PPM ,WALTER-HTE - HTE1206M2W0R016F
Wide Terminal Current Sensing Resistor ,0612 ,0.02R(20mR) ,±1% ,1.5W ,MnCu ,±50PPM ,WALTER-HTE - HTE1206M1W5R020F
Wide Terminal Current Sensing Resistor ,1020 ,0.003R(3mR) ,±1% ,2W ,MnCu ,±100PPM ,WALTER-HTE - HTE2010M2W0R003F
Wide Terminal Current Sensing Resistor ,1225 ,0.015R(15mR) ,±1% ,3W ,MnCu ,±50PPM ,WALTER-HTE - HTE2512M3W0R015F
Wide Terminal Current Sensing Resistor ,1225 ,0.05R(50mR) ,±1% ,3W ,MnCu ,±50PPM ,WALTER-HTE - HTE2512M3W0R050F
Wide Terminal Current Sensing Resistor ,1225 ,0.22R(220mR) ,±1% ,2W ,MnCu ,±50PPM ,WALTER-HTE - HTE2512M2W0R220F
Wide Terminal Current Sensing Resistor ,2512 ,0.22R(220mR) ,±1% ,2W ,MnCu ,±50PPM ,WALTER-HTE - HTE2512M2W0R220F
Wide Terminal Current Sensing Resistor ,2139 ,0.01R(10mR) ,±1% ,5W ,MnCu ,±50PPM ,WALTER-HTE - HTE3921M5W0R010F
Wide Terminal Current Sensing Resistor ,1225 ,0.082R(82mR) ,±1% ,3W ,MnCu ,±50PPM - HTE2512M3W0R082F
Wide Terminal Current Sensing Resistor ,2139 ,0.002R(2mR) ,±1% ,5W ,MnCu ,±100PPM - HTE3921M5W0R002F
Wide Terminal Current Sensing Resistor ,2139 ,0.1R(100mR) ,±1% ,5W ,MnCu ,±50PPM - HTE3921M5W0R100F
Wide Terminal Current Sensing Resistor ,2139 ,0.22R(220mR) ,±1% ,3W ,MnCu ,±50PPM - HTE3921M3W0R220F
Wide Terminal Current Sensing Resistor ,0612 ,0.001R(1mR) ,±0.5% ,1.5W ,MnCu ,±100PPM ,WALTER-HTE - HTE1206M1W5R001D
Wide Terminal Current Sensing Resistor ,1530 ,0.003R(3mR) ,±1% ,4W ,MnCu ,±100PPM - HTE3015M4W0R003F

Manufacturer：	WALTER
Product Series：	HTE series

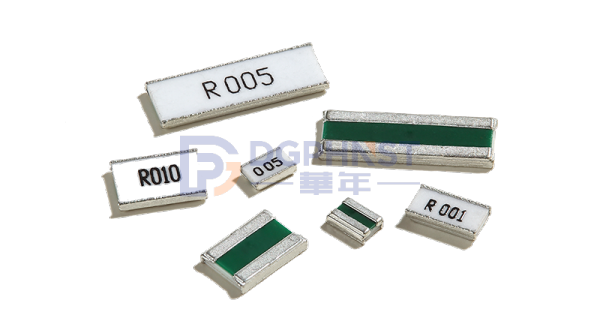

Product Type：	Wide Terminal Current Sensing Resistor
EU RoHS：	2011/65/EU
EU REACH：	REACH SVHC(1907/2006/EC)

{{cartItemsCount}}

Manufacturer	WALTER
Product Series	HTE series
Product Type	Wide Terminal Current Sensing Resistor
Material	MnCu alloy
Power Rating	1W/1.5W/2W/3W/4W/5W/10W
Resistance Tolerance	±0.5%(D) / ±1%(F)
Resistance Value	R001~R100
Size	0805/1206/1508/2010/2512/3008/3015/3618/3921/5931
Protective coating	Flame-retardant epoxy, meets UL- 94-V0 requirements(green)
Terminal electrode	Sn﹑Ni﹑Cu
TCR (ppm/℃)	±100;±50
Operating Temperature	-55℃～170℃
MPQ	2000/4000/5000
Termination Style	SMD
EU RoHS	2011/65/EU
EU REACH	REACH SVHC(1907/2006/EC)
