- Wide Terminal Current Sensing Resistor ,1225 ,0.012R(12mR) ,±1% ,3W ,NiCu ,±50PPM ,WALTER-HTE - HTE2512C3W0R012F
- Wide Terminal Current Sensing Resistor ,0612 ,0.02R(20mR) ,±1% ,2W ,NiCu ,±50PPM ,WALTER-HTE - HTE1206C2W0R020F
- Wide Terminal Current Sensing Resistor ,1225 ,0.015R(15mR) ,±1% ,3W ,NiCu ,±50PPM ,WALTER-HTE - HTE2512C3W0R015F
- Wide Terminal Current Sensing Resistor ,1225 ,0.018R(18mR) ,±1% ,3W ,MnCu ,±50PPM ,WALTER-HTE - HTE2512M3W0R018F
- Wide Terminal Current Sensing Resistor ,1225 ,0.1R(100mR) ,±1% ,3W ,NiCu ,±50PPM ,WALTER-HTE - HTE2512C3W0R100F
- Wide Terminal Current Sensing Resistor ,1530 ,0.01R(10mR) ,±1% ,4W ,NiCu ,±50PPM ,WALTER-HTE - HTE3015C4W0R010F
- Wide Terminal Current Sensing Resistor ,2139 ,0.01R(10mR) ,±1% ,5W ,Cu ,±50PPM ,WALTER-HTE - HTE3921C5W0R010F
- Wide Terminal Current Sensing Resistor ,1530 ,0.003R(3mR) ,±1% ,4W ,NiCu ,±100PPM - HTE3015C4W0R003F
- Wide Terminal Current Sensing Resistor ,1225 ,0.05R(50mR) ,±1% ,3W ,NiCu ,±50PPM ,WALTER-HTE - HTE2512C3W0R050F
- Wide Terminal Current Sensing Resistor ,1225 ,0.01R(10mR) ,±1% ,3W ,NiCu ,±50PPM ,WALTER-HTE - HTE2512C3W0R010F
- Wide Terminal Current Sensing Resistor ,1225 ,0.018R(18mR) ,±1% ,3W ,NiCu ,±50PPM ,WALTER-HTE - HTE2512C3W0R018F
- Wide Terminal Current Sensing Resistor ,1225 ,0.025R(25mR) ,±1% ,3W ,NiCu ,±50PPM ,WALTER-HTE - HTE2512C3W0R025F
- Wide Terminal Current Sensing Resistor ,1225 ,0.06R(60mR) ,±1% ,3W ,NiCu ,±50PPM ,WALTER-HTE - HTE2512C3W0R060F
- Wide Terminal Current Sensing Resistor ,1530 ,0.01R(10mR) ,±1% ,4W ,MnCu ,±50PPM - HTE3015M4W0R010F

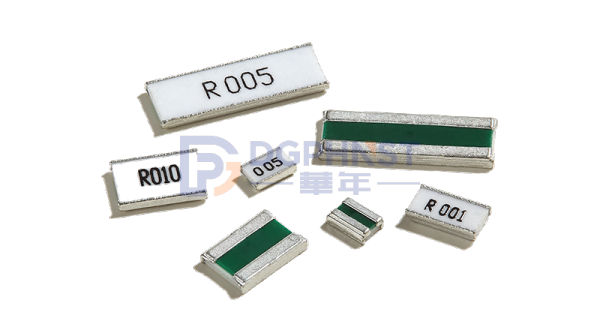

Wide Terminal Current Sensing Resistor
| Manufacturer： | WALTER |
| Product Series： | HTE series |
| Product Type： | Wide Terminal Current Sensing Resistor |
| EU RoHS： | 2011/65/EU |
| EU REACH： | REACH SVHC(1907/2006/EC) |
{{cartItemsCount}}
| Manufacturer | WALTER |
| Product Series | HTE series |
| Product Type | Wide Terminal Current Sensing Resistor |
| Material | NiCu alloy |
| Power Rating | 1W/1.5W/2W/3W/4W/5W/10W |
| Resistance Tolerance | ±0.5%(D) / ±1%(F) |
| Resistance Value | R001~R100 |
| Size | 0805/1206/1508/2010/2512/3008/3015/3618/3921/5931 |
| Protective coating | Flame-retardant epoxy, meets UL- 94-V0 requirements(green) |
| Terminal electrode | Sn﹑Ni﹑Cu |
| TCR (ppm/℃) | ±100;±50 |
| Operating Temperature | -55℃～170℃ |
| MPQ | 2000/4000/5000 |
| Termination Style | SMD |
| EU RoHS | 2011/65/EU |
| EU REACH | REACH SVHC(1907/2006/EC) |
