- Thick Film Low Resistance Chip Resistor ,2512 ,0.75R(750mR) ,±1% ,2W ,- ,- ,LIZ-CH - CH2512FBR750G
- Thick Film Low Resistance Chip Resistor ,2512 ,0.82R(820mR) ,±1% ,2W ,- ,- ,LIZ-CH - CH2512FBR820G
- High Power Thick Film Chip Resistor ,0402 ,4.7R ,±1% ,1/10W ,- ,±200PPM ,LIZ-CH - CH0402FA4R70G
- High Power Thick Film Chip Resistor ,0402 ,5.1R ,±1% ,1/10W ,- ,±200PPM ,LIZ-CH - CH0402FA5R10G
- High Power Thick Film Chip Resistor ,1206 ,1.8R ,±1% ,1/2W ,- ,- ,LIZ-CH - CH1206F31R80G
- High Power Thick Film Chip Resistor ,1206 ,2R ,±1% ,1/2W ,- ,- ,LIZ-CH - CH1206F32R00G
- High Power Thick Film Chip Resistor ,1206 ,75K ,±5% ,1/2W ,- ,- ,LIZ-CH - CH1206J30753G
- High Power Thick Film Chip Resistor ,1210 ,100R ,±1% ,3/4W(0.75W) ,- ,- ,LIZ-CH - CH1210F21000G
- High Power Thick Film Chip Resistor ,2512 ,200R ,±1% ,2W ,- ,- ,LIZ-CH - CH2512FB2000G
- High Power Thick Film Chip Resistor ,2512 ,24.9R ,±1% ,2W ,- ,- ,LIZ-CH - CH2512FB24R9G
- High Power Thick Film Chip Resistor ,2512 ,40.2R ,±1% ,2W ,- ,- ,LIZ-CH - CH2512FB40R2G
- High Power Thick Film Chip Resistor ,2512 ,5.6K ,±1% ,2W ,- ,- ,LIZ-CH - CH2512FB5601G
- High Power Thick Film Chip Resistor ,1206 ,1.5R ,±1% ,1/2W ,- ,- ,LIZ-CH - CH1206F31R50G
- High Power Thick Film Chip Resistor ,2512 ,5.6R ,±1% ,2W ,- ,- ,LIZ-CH - CH2512FB5R60G

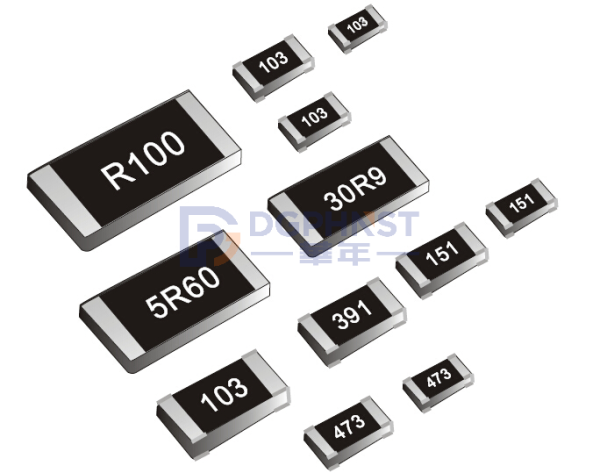

High Power Thick Film Chip Resistor
| Manufacturer： | LIZ |
| Product Series： | Type CH |
| Product Type： | High Power Thick Film Chip Resistors |
| EU RoHS： | 2011/65/EU |
| EU REACH： | REACH SVHC(1907/2006/EC) |
{{cartItemsCount}}
| Manufacturer | LIZ |
| Product Series | Type CH |
| Product Type | High Power Thick Film Chip Resistors |
| Size | 0402 0603 0805 1206 1210 2010 2512 |
| Resistance Range | 1Ω~22MΩ |
| Resistance Tolerance | D=±0.5% F=±1% G=±2% J=±5% |
| Rated Power | 1=1W 2= 3/4W 3= 1/2W 4= 1/4W 8= 1/8W A= 1/10W B= 2W |
| Operation Temperature | -55℃~+155℃ |
| storage condition | 5～30℃, 30～75%RH. |
| Ceramic substrate | Al2O3 |
| Resistive layer | RuO2 + glass |
| Max Working Voltage | 200V |
| Max Overload Voltage | 500V |
| EU RoHS | 2011/65/EU |
| EU REACH | REACH SVHC(1907/2006/EC) |
